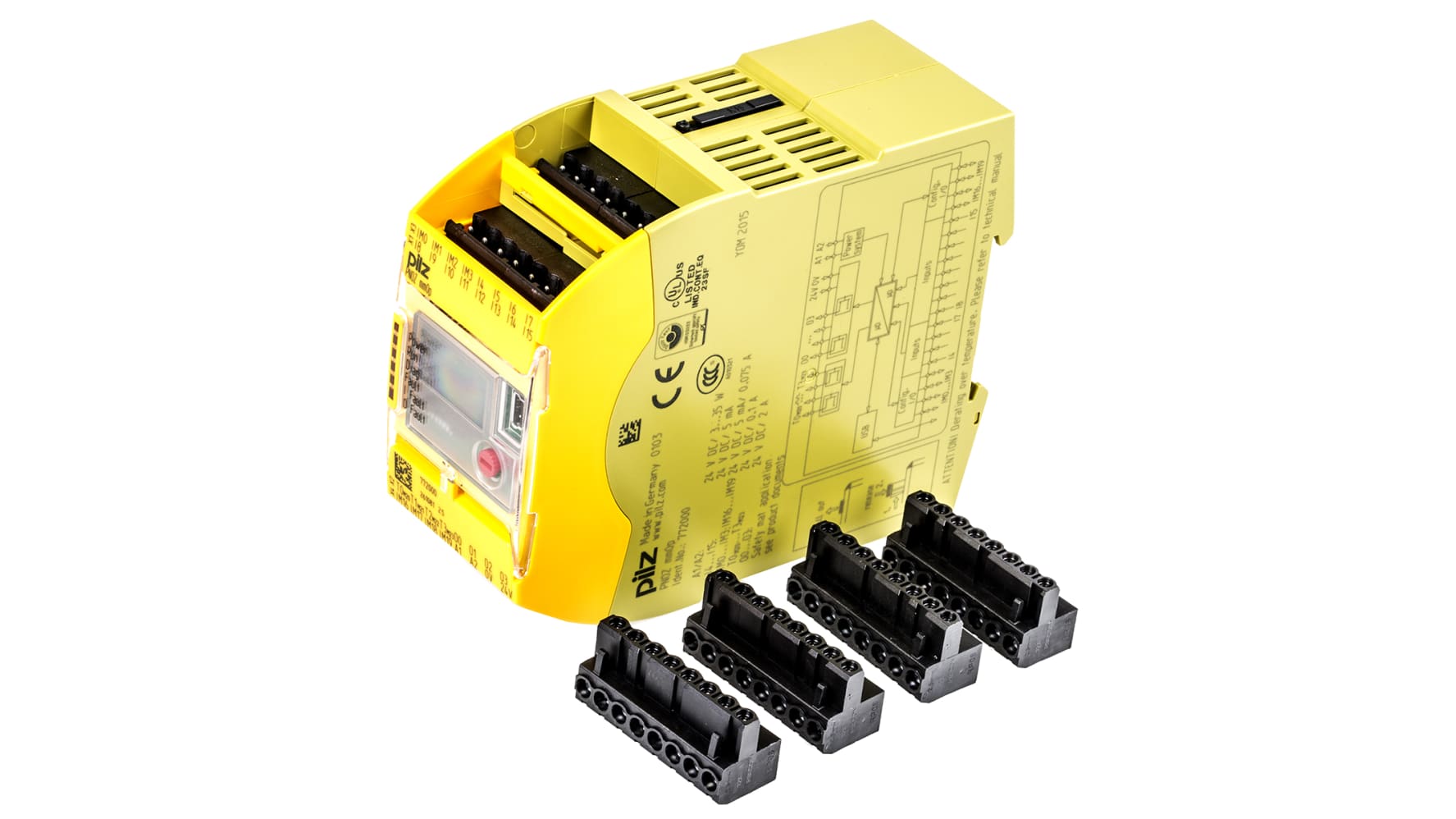

PNOZmulti Mini Base Unit, Safety Controller
The PNOZmulti Mini configurable safety relay from Pilz has an integral LCD display which provides status information and diagnostic messages. This safety controller has all the functions of the established PNOZmulti yet is only a space saving 45mm wide. A major advantage of the PNOZmulti Mini is that all required functions are configured directly via a PC running the PNOZmulti Configurator Software, instead of relying on wiring together different safety relays.
20 inputs
4 safe semiconductor outputs
4 test pulse outputs
LCD display for information and diagnostics
USB configuration interface
Can be configured using the PNOZmulti Configurator
Compatible with PNOZmulti
4 safe semiconductor outputs
4 test pulse outputs
LCD display for information and diagnostics
USB configuration interface
Can be configured using the PNOZmulti Configurator
Compatible with PNOZmulti
Pilz Safety Controller
The Pilz PNOZmulti mini series is configurable safety relay with 20 safety inputs. It is the latest device with an integral LCD display that provides status information and diagnostic messages. This safety controller has all the functions of the established PNOZmulti is only a space-saving 45mm wide. A major advantage of this relay is that all required functions are configured directly via a PC running the PNOZmulti. The configurator software, instead of relying on wiring together different safety relays.
Features and Benefits
4 safe semiconductor outputs
4 test pulse outputs
LCD display for information and diagnostics
USB configuration interface
Can be configured using the PNOZmulti configurator
24VDC supply voltage
4 test pulse outputs
LCD display for information and diagnostics
USB configuration interface
Can be configured using the PNOZmulti configurator
24VDC supply voltage
Certifications
UL listed
EC certified
TÜV certified
BG certified
CCC certified
EC certified
TÜV certified
BG certified
CCC certified
