Schneider Electric Logic Controllers – Modicon M221 Range
The Modicon M221 logic controller is for application for controlling of simple machines and offers best-in-class performance. It requires minimal installation and offers tremendous versatility. Connect a simple remote operator panel for instant maintenance and machine visualization.
• SD card slot and USB port
• 2 analog inputs and a broad choice of I/O’s
• Run/stop switch and cartridge extension
• Ethernet and serial line ports
• Programming with SoMachineBasic software
• Simple navigation delivers a more efficient engineering process
• All programming, visualization, and commissioning are handled in just one intuitive tool
• 2 analog inputs and a broad choice of I/O’s
• Run/stop switch and cartridge extension
• Ethernet and serial line ports
• Programming with SoMachineBasic software
• Simple navigation delivers a more efficient engineering process
• All programming, visualization, and commissioning are handled in just one intuitive tool
Additional modules for this controller are:
• Safety module
• TeSys SoLink motor starter
• Extensive line of analog and digital modules
• Lexium servo drives
• TeSys SoLink motor starter
• Extensive line of analog and digital modules
• Lexium servo drives

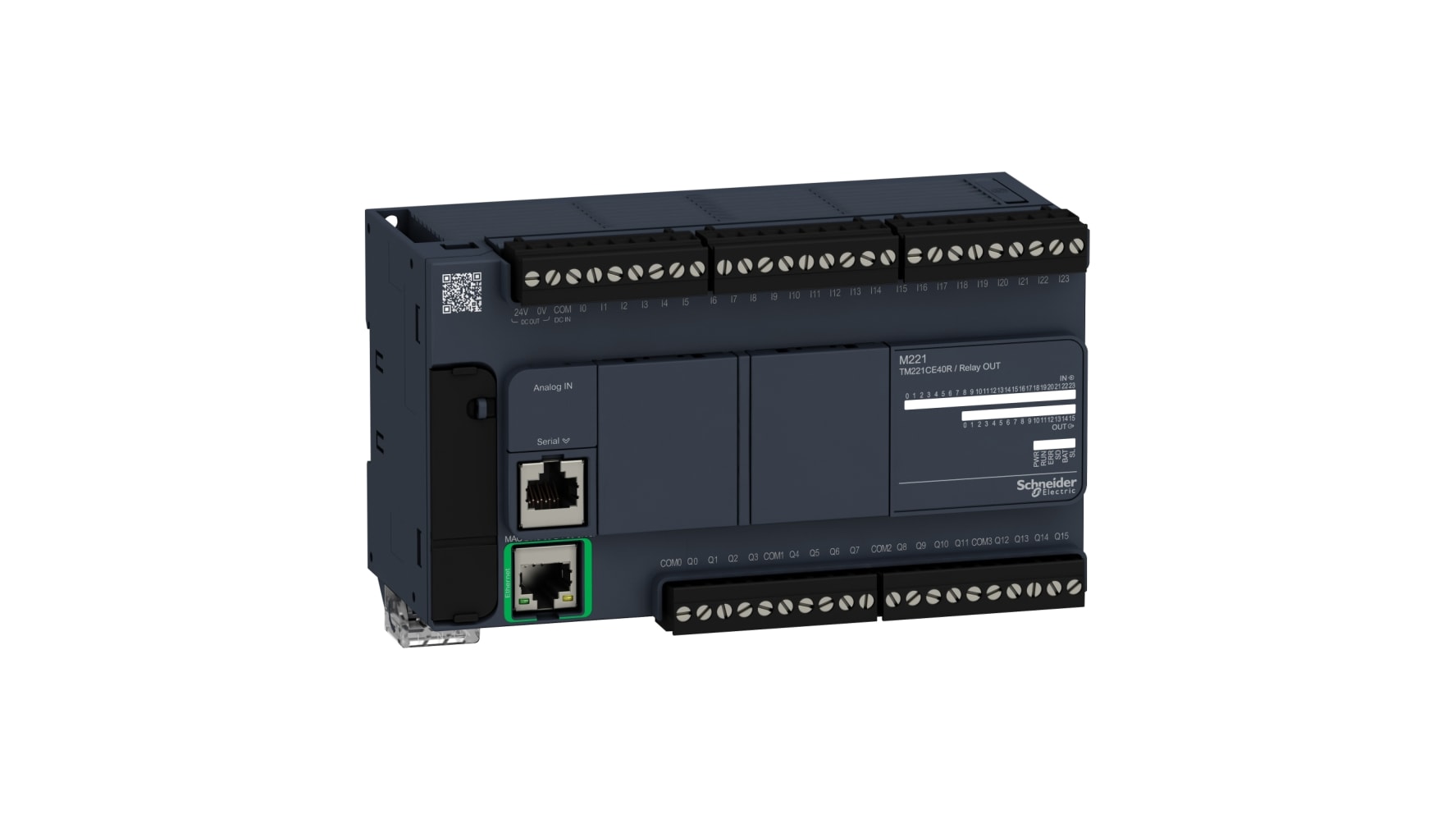

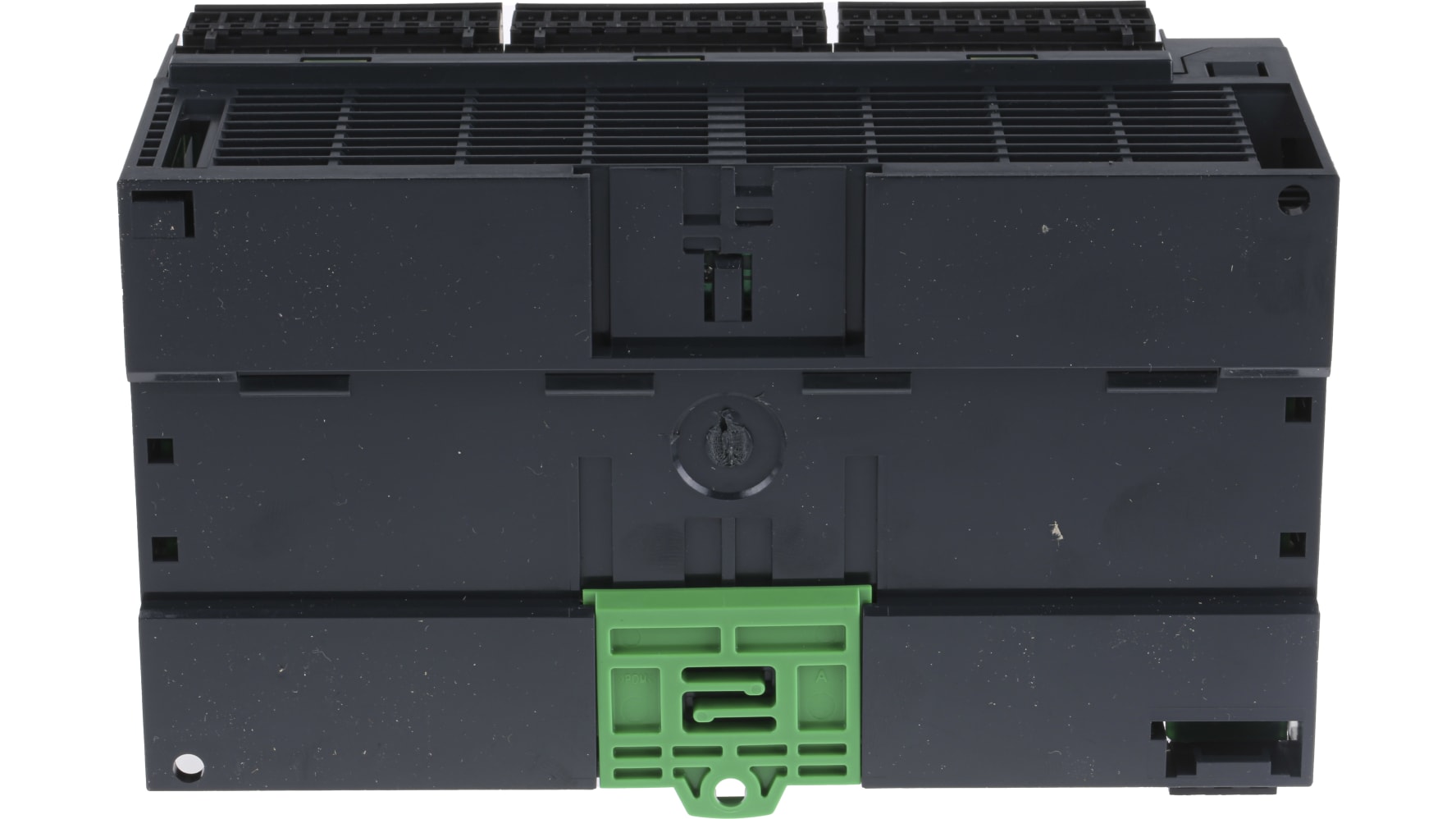

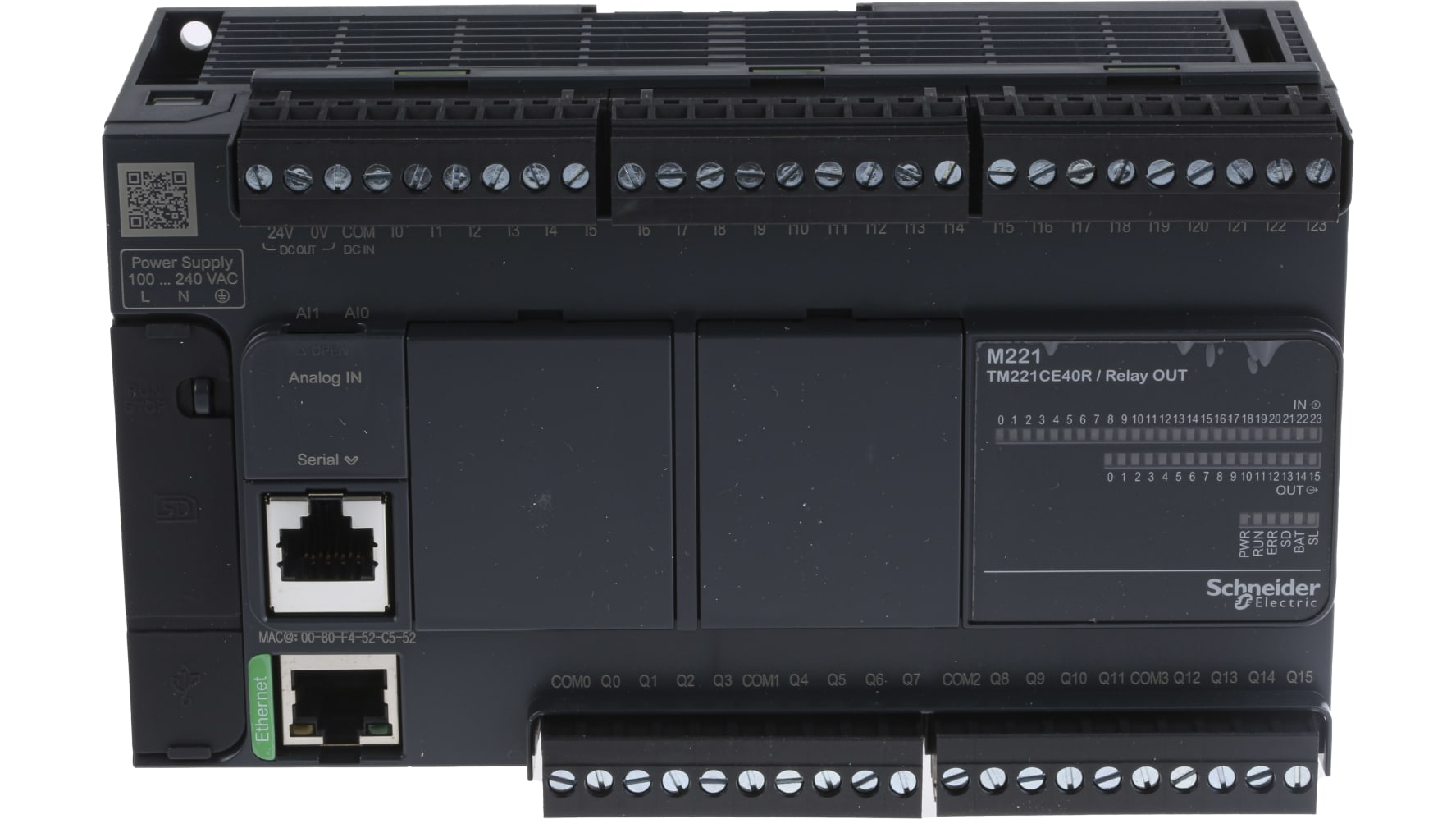

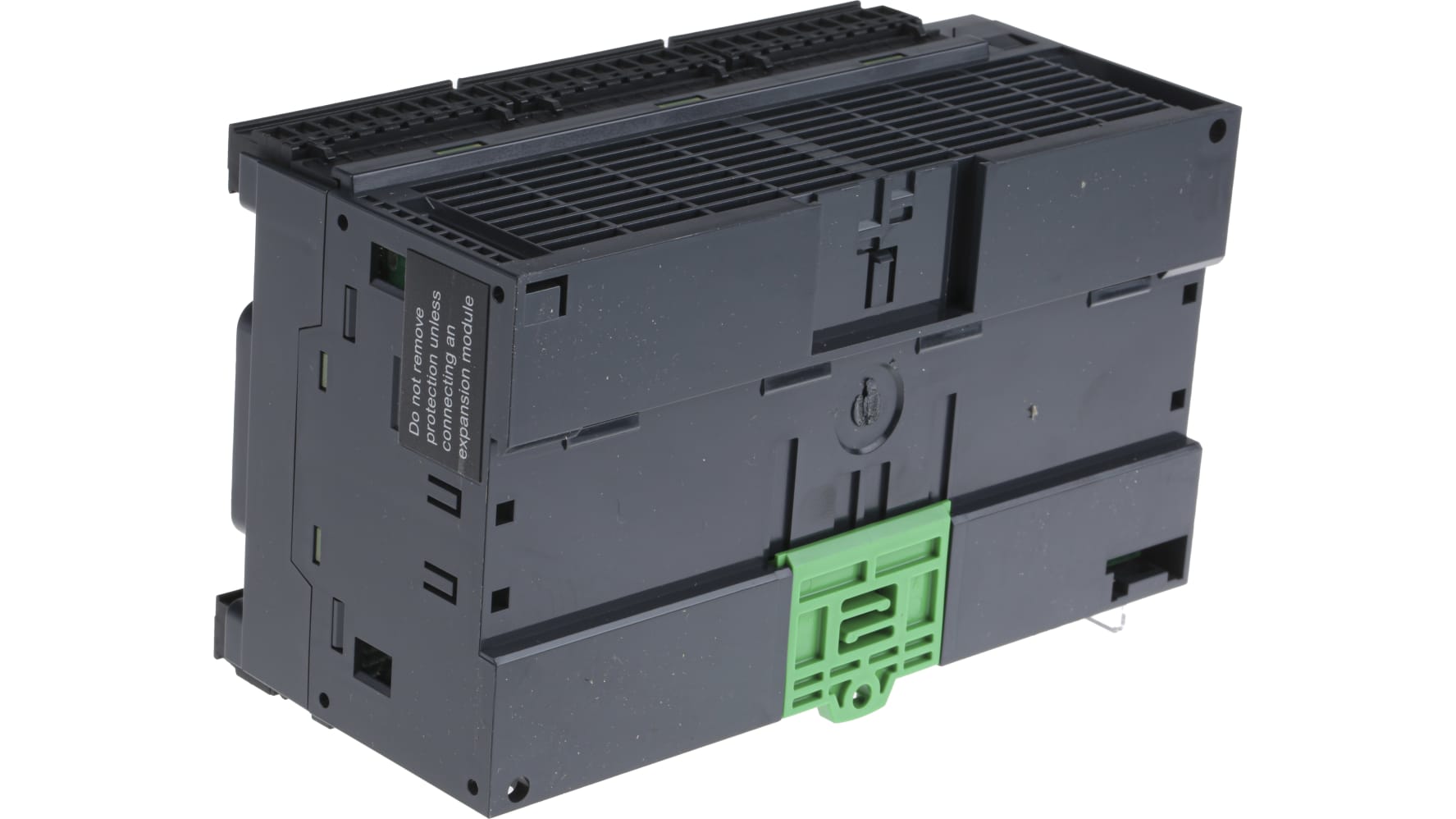

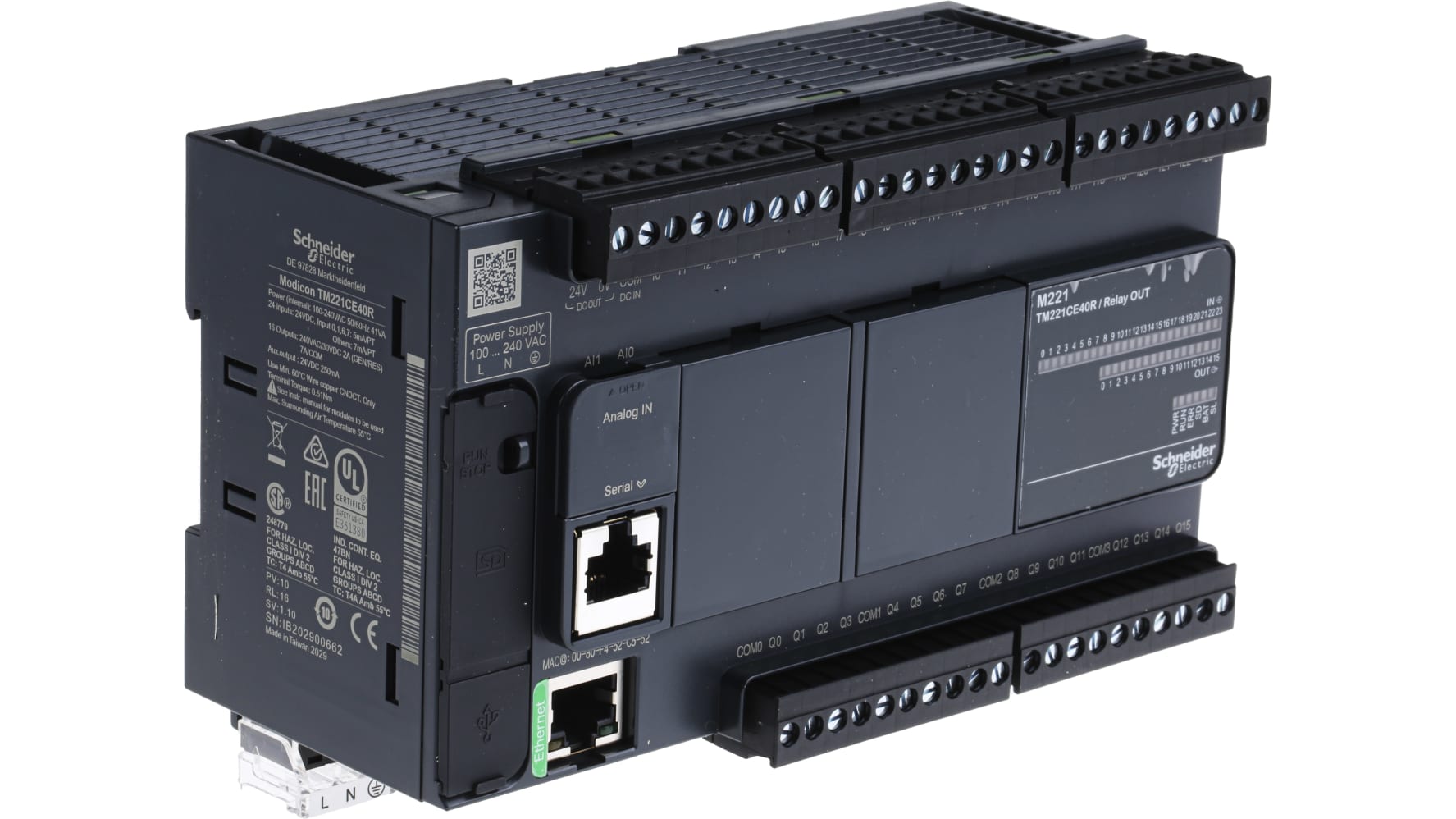

Schneider Electric Modicon M221 Series Logic Controller, 100 to 240 V AC Supply Voltage, RS232 / RS485 / USB Interface – TM221CE40R
This logic controller is part of the Modicon M221 series, designed for the industrial automation sector. With compact dimensions of 160x70x90mm and weighing only 0.456kg, it is suitable for panel mounting applications. This controller supports a supply voltage range of 100-240V AC and operates within a temperature range of -10°C to +55°C. Its robust construction makes it appropriate for a variety of environments.
Features & Benefits
• 24 discrete inputs enhance monitoring capabilities
• 16 relay outputs provide robust switching control
• Supports Ethernet network for flexible connectivity
• CoDeSys programming simplifies application development
• Integrated battery backup ensures continuous operation
• High-temperature endurance for challenging conditions
• 16 relay outputs provide robust switching control
• Supports Ethernet network for flexible connectivity
• CoDeSys programming simplifies application development
• Integrated battery backup ensures continuous operation
• High-temperature endurance for challenging conditions
Applications
• Used for automation in manufacturing processes
• Ideal for discrete signal management systems
• Suitable for remote monitoring via Ethernet connections
• Utilised in process control for industrial settings
• Ideal for discrete signal management systems
• Suitable for remote monitoring via Ethernet connections
• Utilised in process control for industrial settings
Can it operate in extreme temperatures?
Yes, it functions within -10°C to +55°C.
Will it support multiple I/O expansion modules?
It can accommodate up to 7 local and 14 remote modules.
Is it compatible with USB programming?
Yes, it features a mini USB 2.0 connection for programming.
Can it facilitate communication over RS232 and RS485?
Yes, it includes both RS232 and RS485 interfaces.
Standards
EN/IEC 60664-1, EN/IEC 61131-2, EN/IEC 61010-2-201
Certificate No.
DNV-GL, EAC, ABS, CULus, LR, RCM, CSA, IACS E10
Schneider Electric Modicon M221
The Modicon M221 logic controller is a MachineStruxure controller. The next generation of MachineStruxure from Schneider Electric is an intuitive solution for machine automation with all the features and functions you need to build machines that will improve your bottom line. From design and development, to commissioning and maintenance, MachineStruxure is a complete machine building solution with benefits all through the machine life cycle.
